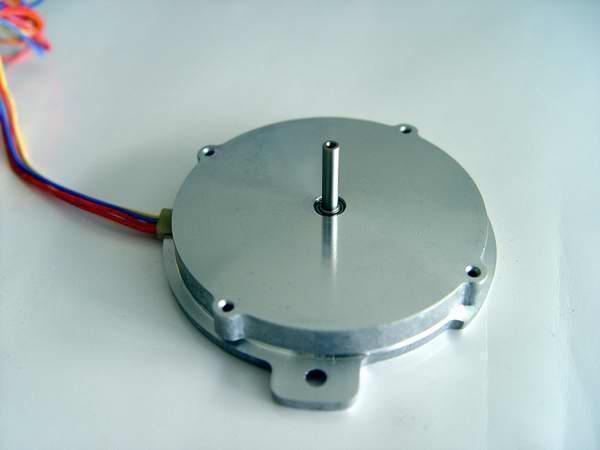

1.8 Degree Size 63mm Slim Pancake Hybrid Stepper Motor
Size 63mm High Torque Hybrid Stepping Motor
| Parameter | Value |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Tolerance | ±10% at 20℃ |
| Inductance Tolerance | ±20% at 1KHz |
| Temperature Rise | 80K Max. (two-phase power) |
| Operating Ambient Temperature | -20 ℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC, one minute |
| Radial Play | 0.02 Max. (450g-load) |
| Axial Play | 0.08 Max. (450g-load) |
| Maximum Radial Force | 20N |
| Maximum Axial Force | 2N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Moment of Inertia | Weight | Body Length | Working Mode |
| V | A | Ω | mH | g·cm | kg·m2 | kg | mm | |||
| FL63ST10-1004A-G | 3.8 | 1.0 | 3.8 | 2.0 | 560 | 4 | 16×10-7 | 0.095 | 9.6 | Continuous |
