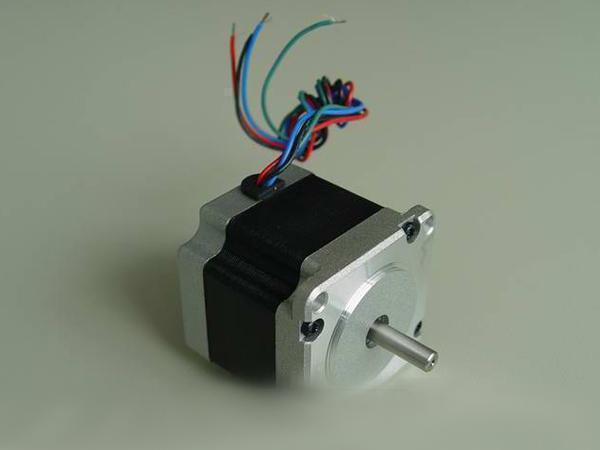

0.9 Degree Size 57mm 2-Phase High Torque Hybrid Stepper Motor
0.9º Size 57mm High Torque 2 phase Stepper Motor (Square)
Features
High precision, smooth running, low noise
Application
Bank equipment: ATM
Water treatment industry: Screw pump
Medical industry: Biochemical analyzer, blood cell analyzer
Textile industry: Flat knitting machine, circular knitting machine, bobbin winder
Advertising industry: Laser machine, engraving machine, marking machine, inkjet printer
Industrial automation industry: Semiconductor testing equipment, winding machine, stripping machine
Others: Metro fare collection system, etc.
| Item | Specifications |
| Step Angle | 0.9º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max. (rated current,2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | kg·cm | mm | |
| FL57STH41-1006MA | FL57STH41-1006MB | 5.7 | 1 | 5.7 | 8 | 3.9 | 6 | 120 | 0.45 | 0.21 | 41 |
| FL57STH41-2006MA | FL57STH41-2006MB | 2.8 | 2 | 1.4 | 2.2 | 3.9 | 6 | ||||
| FL57STH41-3006MA | FL57STH41-3006MB | 1.9 | 3 | 0.63 | 1 | 3.9 | 6 | ||||
| FL57STH41-2804MA | FL57STH41-2804MB | 2 | 2.8 | 0.7 | 2.2 | 5.5 | 4 | ||||
| FL57STH56-1006MA | FL57STH56-1006MB | 7.4 | 1 | 7.4 | 17.5 | 9 | 6 | 300 | 0.7 | 0.4 | 56 |
| FL57STH56-2006MA | FL57STH56-2006MB | 3.6 | 2 | 1.8 | 4.5 | 9 | 6 | ||||
| FL57STH56-3006MA | FL57STH56-3006MB | 2.3 | 3 | 0.75 | 1.9 | 9 | 6 | ||||
| FL57STH56-2804MA | FL57STH56-2804MB | 2.5 | 2.8 | 0.9 | 4.5 | 12 | 4 | ||||
| FL57STH76-1006MA | FL57STH76-1006MB | 8.6 | 1 | 8.6 | 23 | 13.5 | 6 | 480 | 1 | 0.68 | 76 |
| FL57STH76-2006MA | FL57STH76-2006MB | 4.5 | 2 | 2.25 | 5.6 | 13.5 | 6 | ||||
| FL57STH76-3006MA | FL57STH76-3006MB | 3 | 3 | 1 | 2.6 | 13.5 | 6 | ||||
| FL57STH76-2804MA | FL57STH76-2804MB | 3.2 | 2.8 | 1.13 | 5.6 | ||||||
Related Names
High Precision Hybrid Step Motor | Textile Winder Used 2-phase Stepping Electric Machine | High Torque Stepper Motor for Laser Machine
