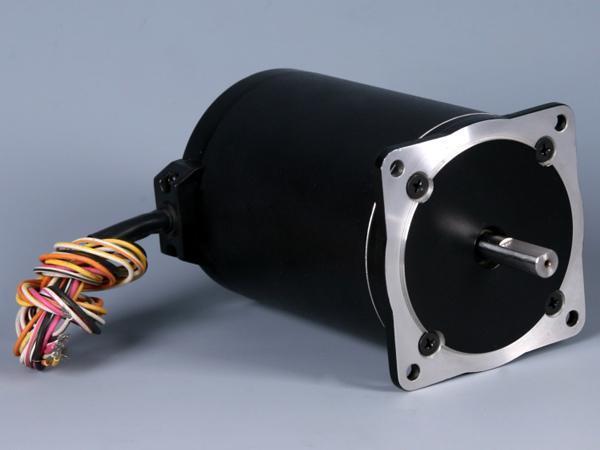

0.72, 1.2, 1.5, 1.8 Degree Size 130mm 2-Phase Hybrid Stepper Motor
Features
High torque, high precision, smooth operation
Application
This 2-phase hybrid stepper motor is used in engraving machine and other equipment in the advertising industry.
| Item | Specifications |
| Step Angle | 0.72º /1.2º /1.8º |
| Step Angle Accuracy | ± 5% (full step, no load) |
| Resistance Accuracy | ± 10% |
| Inductance Accuracy | ± 20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 1500V AC for one minute |
| Radial Play | 0.02 Max. (450g-load) |
| Axial Play | 0.08 Max. (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Axial Force | 60N |
| Rotation | CW (See from the front flange) |
| Model No. | No. of Phase | Step Angle | Rated Voltage | Current per Phase | No Load Run Frequency | Holding Torque | Rotor Inertia | Length | Shaft Dimension Φ D | Flange Dimension D1 | KEY A | Wiring Diagram |
| Single Shaft | degree | V | A | KHz | Kg·cm | kg·cm2 | mm | mm | mm | |||
| FL130BYG2501 | 2 | 1.8 | 120-310 | 6.0 | ≥20 | 27 | 33 | 165 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | 1 |
| FL130BYG2502 | 2 | 1.8 | 120-310 | 7.0 | ≥15 | 40 | 48 | 230 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | 1 |
| FL130BYG2503 | 2 | 1.8 | 120-310 | 7.0 | ≥12 | 50 | 60 | 270 | 100 0 -0.023 | 1 | ||
| FL130BYG3501 | 3 | 1.2 | 80-325 | 6.0 | ≥15 | 25 | 33 | 165 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | |
| FL130BYG3502 | 3 | 1.2 | 80-325 | 6.0 | ≥15 | 37 | 48 | 230 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | |
| FL130BYG3503 | 3 | 1.2 | 80-325 | 6.0 | ≥15 | 50 | 60 | 270 | 100 0 -0.023 | |||
| FL130BYG5501 | 5 | 0.72 | 120-310 | 5.0 | ≥20 | 20 | 33 | 165 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | 2 |
| FL130BYG5502 | 5 | 0.72 | 120-310 | 5.0 | ≥20 | 30 | 48 | 230 | 19 –0.013 -0.028 | 100 0 -0.023 | 5×25 | 2 |
| FL130BYG5503 | 5 | 0.72 | 120-310 | 5.0 | ≥15 | 40 | 60 | 270 | 100 0 -0.023 | 2 |
Related Names
