1.8 Degree Size 42mm 2-Phase Integrated Stepper Motor

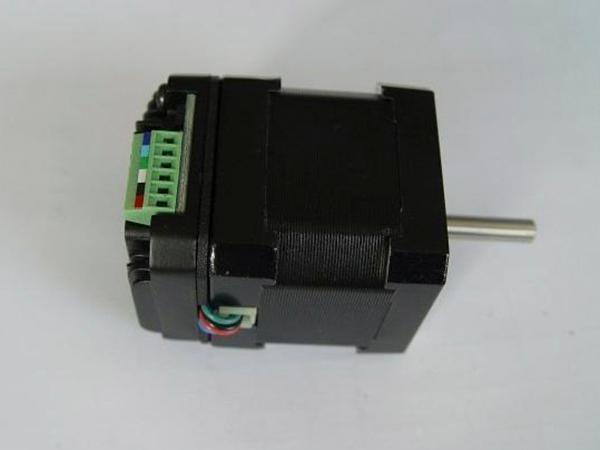

1.8º 42mm Integrated Driver Stepper Motor
This 2-phase stepper motor adopts an integrated driver which features small volume and strong driving capacity. This driver can also work separately.
Application
Security industry: Closed-circuit television
Advertising industry: Laser machine, marking machine
Textile industry: Winding machine, flat knitting machine
Industrial automation industry: PCB, semiconductor soldering
Medical industry: Syringe pump, infusion pump, dental equipment, blood analyzer
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% (20℃) |
| Inductance Accuracy | ±20% (1kHz) |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.,500VDC |
| Dielectric Strength | 500VAC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 28N (20mm from the flange) |
| Max. Axial Force | 10N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length |
| Single Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | g·cm | mm | |
| FL42STH33-1334A-IE2 | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 | 120 | 33.5 |
| FL42STH38-1684A-IE4 | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 54 | 0.28 | 150 | 39.5 |
| FL42STH47-1684A-IE4 | 2.8 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 68 | 0.35 | 200 | 47.5 |
