- 1.8 Degree Size 57mm 2-Phase Hybrid Stepper Motor
1.8 Degree Size 57mm 2-Phase Hybrid Stepper Motor

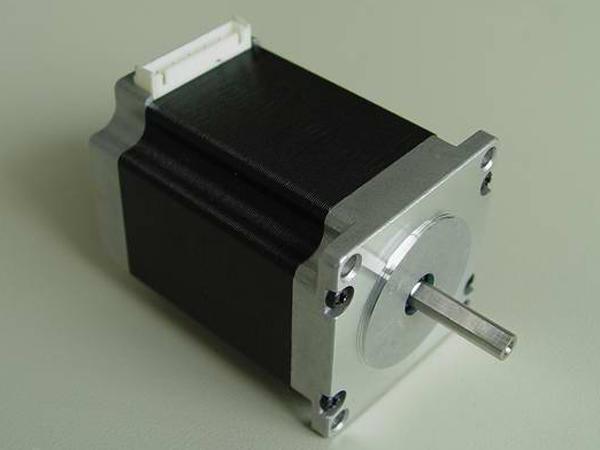

Nema 23 2 phase Hybrid Stepper Motor
Features
Large acceleration, small moment of inertia, high precision
Application
Medical industry: Biochemical analyzer, blood cell analyzer
Textile industry: Flat knitting machine, circular knitting machine, bobbin winder
Advertising industry: Laser machine, engraving machine, marking machine, inkjet printer
Industrial automation industry: Semiconductor testing equipment, winding machine, stripping machine
Water treatment industry: Screw pump
Bank equipment: ATM
Others: Metro fare collection system, etc.
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | kg·cm | mm | |
| FL57ST41-1106A | FL57ST41-1106B | 4 | 1.1 | 3.6 | 3.6 | 2.88 | 6 | 57 | 0.54 | 0.18 | 41 |
| FL57ST41-0406A | FL57ST41-0406B | 12 | 0.4 | 30 | 30 | 2.88 | 6 | ||||
| FL57ST41-1564A | FL57ST41-1564B | 2.8 | 1.56 | 1.8 | 3.6 | 4.0 | 4 | ||||
| FL57ST51-0856A | FL57ST51-0856B | 6 | 0.85 | 7.1 | 9 | 4.97 | 6 | 110 | 0.60 | 0.35 | 51 |
| FL57ST51-0426A | FL57ST51-0426B | 12 | 0.42 | 29 | 36 | 4.97 | 6 | ||||
| FL57ST51-2804A | FL57ST51-2804B | 2.38 | 2.8 | 0.85 | 2.1 | 6.9 | 4 | ||||
| FL57ST56-1206A | FL57ST56-1206B | 6 | 1.2 | 5 | 8 | 6.05 | 6 | 135 | 0.65 | 0.42 | 56 |
| FL57ST56-0606A | FL57ST56-0606B | 12 | 0.6 | 20 | 32 | 6.05 | 6 | ||||
| FL57ST56-2554A | FL57ST56-2554B | 2.8 | 2.55 | 1.1 | 3.6 | 8.4 | 4 | ||||
| FL57ST76-1506A | FL57ST76-1506B | 5.4 | 1.5 | 3.6 | 6 | 9 | 6 | 200 | 0.95 | 0.72 | 76 |
| FL57ST76-0686A | FL57ST76-0686B | 12 | 0.68 | 17.7 | 30 | 9 | 6 | ||||
| FL57ST76-3304A | FL57ST76-3304B | 2.7 | 3.3 | 0.85 | 3 | 12.5 | 4 | ||||
Related Names
High Accelerated Speed 2-phase Stepper Electric Machine | Stepping Motor for Semiconductor Device | Marking Machine Used 2-phase Hybrid Step Motor
