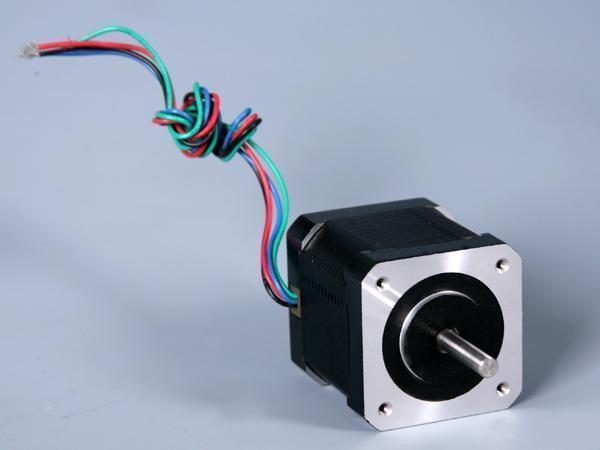

1.8 Degree Size 42mm 2-Phase High Torque Hybrid Stepper Motor
1.8º. Size 42mm High Torque Hybrid Stepper Motor
Features
High resolution, high-precision positioning, small vibration, high output torque
Application
Advertising industry: Laser machine, marking machine
Industrial automation industry: PCB, semiconductor soldering
Medical industry: Syringe pump, infusion pump, dental equipment, blood analyzer
Security industry: Closed-circuit television
Textile industry: Winding machine, flat knitting machine
| Item | Specifications |
| Step Angle | 1.8º. |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 28N (20mm from the flange) |
| Max. Axial Force | 10N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | Kg·cm | g·cm2 | kg | g·cm | mm | |
| FL42STH25-0404A | FL42STH25-0404B | 9.6 | 0.4 | 24 | 36 | 1.7 | 4 | 20 | 0.15 | 75 | 25 |
| FL42STH33-0956A | FL42STH33-0956B | 4 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 35 | 0.22 | 120 | 34 |
| FL42STH33-0406A | FL42STH33-0406B | 9.6 | 0.4 | 24 | 15 | 1.6 | 6 | ||||
| FL42STH33-0316A | FL42STH33-0316B | 12 | 0.31 | 38.5 | 21 | 1.6 | 6 | ||||
| FL42STH33-1334A | FL42STH33-1334B | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | ||||
| FL42STH38-1206A | FL42STH38-1206B | 4 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 54 | 0.28 | 150 | 40 |
| FL42STH38-0806A | FL42STH38-0806B | 6 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | ||||
| FL42STH38-0406A | FL42STH38-0406B | 12 | 0.4 | 30 | 30 | 2.6 | 6 | ||||
| FL42STH38-1684A | FL42STH38-1684B | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | ||||
| FL42STH47-1206A | FL42STH47-1206B | 4 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 68 | 0.35 | 200 | 48 |
| FL42STH47-0806A | FL42STH47-0806B | 6 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | ||||
| FL42STH47-0406A | FL42STH47-0406B | 12 | 0.4 | 30 | 25 | 3.17 | 6 | ||||
| FL42STH47-1684A | FL42STH47-1684B | 2.8 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | ||||
| FL42STH60-1206A | FL42STH60-1206B | 7.2 | 1.2 | 6 | 7 | 6.5 | 6 | 102 | 0.5 | 280 | 60 |
