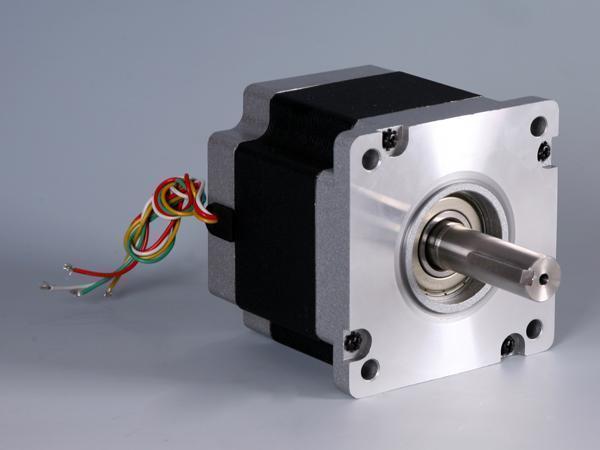

1.8 Degree Size 110mm 2-Phase High Torque Hybrid Stepper Motor
Features
Large torque, high precision, large self-locking force
Application
Advertising industry: Engraving machine, laser machine
Home appliance industry: Coffee machine
Medical industry: Pharmaceutical ampoule printing machine, automatic strapping machine
Textile industry: Rotary screen printing press
Vehicle industry: Electric car
| Item | Specifications |
| Step Angle | 1.8。 |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% (20℃) |
| Inductance Accuracy | ±20% (1KHz) |
| Temperature Rise | 80。C Max.(rated current,2 phase on) |
| Ambient Temperature | -20。C~+50。C |
| Insulation Resistance | 100MΩMin. ,500VDC |
| Dielectric Strength | 1200VAC , 1s , 5mA |
| Shaft Radial Play | 0.02Max. (450 g-load) |
| Shaft Axial Play | 0.08Max. (450 g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
| Model No. | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length |
| Single shaft | A | Ω | mH | N·m | # | g·cm2 | kg | kg·cm | mm |
| FL110STH99-5504A | 5.5 | 0.7 | 9.8 | 11.2 | 4 | 5500 | 5 | 3 | 99 |
| FL110STH150-6504A | 6.5 | 0.72 | 12.8 | 21 | 4 | 10900 | 8.4 | 5.9 | 150 |
| FL110STH201-8004A | 8 | 0.67 | 11 | 28 | 4 | 16200 | 11.7 | 7.5 | 201 |
