1.8 Degree Size 28mm 2-Phase High Torque Hybrid Stepper Motor

1.8 Degree Size 28mm 2-Phase High Torque Hybrid Stepper Motor

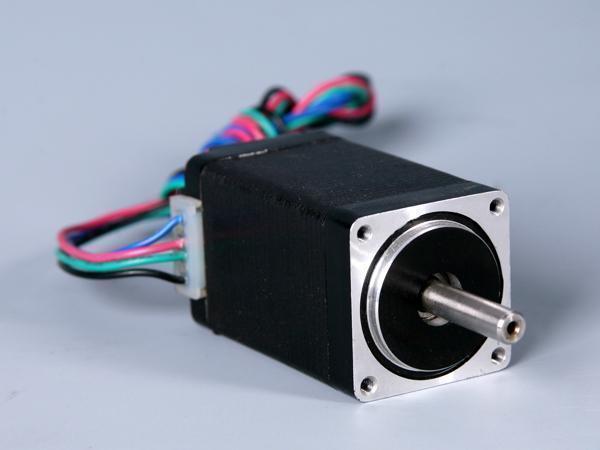

1.8º Size 28mm High Torque Hybrid Stepper Motor

Features
Small size, high smoothness, small inertia

Features
High precision, small moment of inertia, small size

Application
This 2-phase high torque hybrid stepper motor is often used in the CT scanner, biochemical analyzer, hematology analyzer and other machines in the medical industry. It is also applicable to the communication industry.

Item Specifications
Step Angle 1.8º
Step Angle Accuracy ±5% (full step, no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max. (rated current, 2 phase on)
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 500V AC for one minute
Radial Play 0.02 Max. (450 g-load)
Axial Play 0.08 Max. (450 g-load)
Max. Radial Force 28N (20mm from the flange)
Max. Axial Force 10N
Model Rated Voltage Current per Phase Resistance per Phase Inductance per Phase Holding Torque Number of Leads Rotor Inertia Weight Length
Single Shaft Double Shaft V A Ω mH g·cm
kg·m2 kg mm
FL28STH32- 0956A FL28STH32- 0956B 2.66 0.95 2.8 0.8 430 6 9×10-7 0.11 31.5
FL28STH32- 0674A FL28STH32- 0674B 3.8 0.67 5.6 3.4 600 4
FL28STH45- 0956A FL28STH45- 0956B 3.4 0.95 3.4 1.2 750 6 12×10-7 0.14 44.5
FL28STH45- 0674A FL28STH45- 0674B 4.56 0.67 6.8 4.9 950 4
FL28STH51- 0956A FL28STH51- 0956B 4.4 0.95 4.6 1.8 900 6 18×10-7 0.2 50.5
FL28STH51-0674A FL28STH51-0674B 6.2 0.67 9.2 7.2 1200 4
