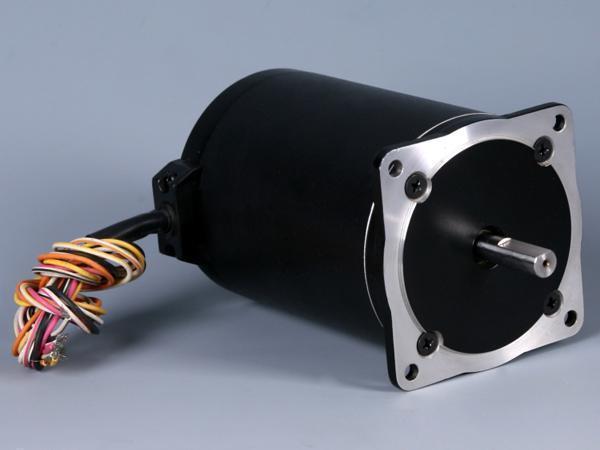

- 0.72, 1.2, 1.5, 1.8 Degree Size 110mm 2-Phase Hybrid Stepper Motor
0.72, 1.2, 1.5, 1.8 Degree Size 110mm 2-Phase Hybrid Stepper Motor
Features
Large torque, high precision and smooth running
Application
Vehicle industry: Electric car
Home appliance industry: Coffee machine
Textile industry: Rotary screen printing presses
Advertising industry: Engraving machine, laser machine
Medical industry: Medicine ampoule printing machine, automatic strapping machine
| Item | Specifications |
| Step Angle | 0.72º/1.2º/1.5º/1.8º |
| Step Angle Accuracy | ± 5% (full step, no load) |
| Resistance Accuracy | ± 10% |
| Inductance Accuracy | ± 20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 1500V AC for one minute |
| Radial Play | 0.02 Max. (450g-load) |
| Axial Play | 0.08 Max. (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Axial Force | 60N |
| Rotation | CW (See from the front flange) |
| Model No. | No. of Phase | Step angle | Rated Voltage | Current per Phase | No-load Run Frequency | Holding Torque | Rotor Inertia | Length | Shaft Dimension Φ D | Flange Dimension D1 | KEY A | Wiring Diagram |
| Single Shaft | degree | V | A | KHz | Kg·cm | kg·cm2 | mm | mm | mm | |||
| FL110BYG2500 | 2 | 1.8 | 120-310 | 4.0 | ≥15 | 8.0 | 6.0 | 86 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG2501 | 2 | 1.8 | 120-310 | 4.0 | ≥15 | 12.0 | 11.0 | 144 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG2502 | 2 | 1.8 | 120-310 | 5.0 | ≥20 | 20.0 | 15.0 | 182 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG2600 | 2 | 1.5 | 120-310 | 4.0 | ≥15 | 8.0 | 6.0 | 86 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG2601 | 2 | 1.5 | 120-310 | 4.0 | ≥20 | 12.0 | 11.0 | 142 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG2602 | 2 | 1.5 | 120-310 | 5.0 | ≥20 | 20.0 | 15.0 | 184 | 16 -0.01 -0.022 | 85 0 -0.017 | 4×9 | 1 |
| FL110BYG3500 | 3 | 1.2 | 120-310 | 3.0 | ≥25 | 8.0 | 6.0 | 100 | 19 -0.013 -0.028 | 85 0 -0.017 | 6×30 | 2 |
| FL110BYG3501 | 3 | 1.2 | 120-310 | 3.0 | ≥30 | 12.0 | 11.0 | 144 | 19 -0.013 -0.028 | 85 0 -0.017 | 6×30 | 2 |
| FL110BYG3502 | 3 | 1.2 | 120-310 | 3.0 | ≥30 | 16.0 | 15.0 | 182 | 19 -0.013 -0.028 | 85 0 -0.017 | 6×30 | 2 |
| FL110BYG3503 | 3 | 1.2 | 120-310 | 3.0 | ≥30 | 20.0 | 18.0 | 261 | 19 -0.013 -0.028 | 85 0 -0.017 | 6×30 | 2 |
| FL110BYG5501 | 5 | 0.72 | 120-310 | 3.0 | ≥20 | 10.0 | 11.0 | 144 | 16 -0.01 -0.022 | 56 0 -0.017 | 5×25 | 1 |
| FL110BYG5502 | 5 | 0.72 | 120-310 | 5.0 | ≥20 | 16.0 | 15.0 | 189 | 16 -0.01 -0.022 | 56 0 -0.017 | 5×25 | 1 |
| FL110BYG5503 | 5 | 0.72 | 120-310 | 5.0 | ≥20 | 20.0 | 18.0 | 231 | 19 -0.013 -0.028 | 56 0 -0.017 | 5×25 | 1 |
