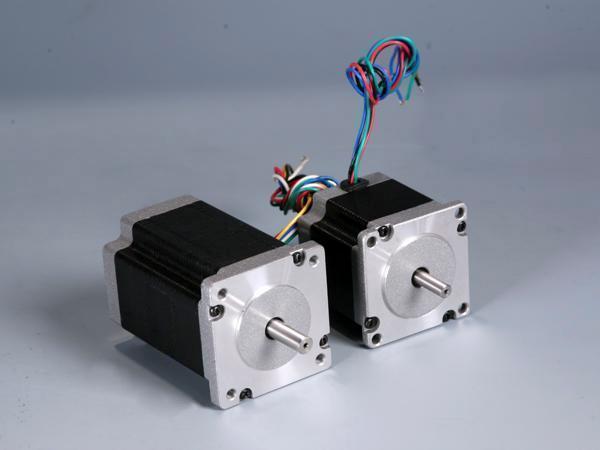

1.8 Degree Size 60mm 2-Phase High Torque Hybrid Stepper Motor
Features
Large torque, high precision, good low-speed performance
Application
Industrial automation industry: CNC machine tool, wire stripping machine, paint mixer
Advertising industry: Engraving machine, laser machine, packaging machinery
New energy industry: Solar panel tracking system
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | ||
| Single Shaft | Double Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | kg·cm | mm | ||
| FL60STH45-2008AF | FL60STH45-2008BF | Unipolar | 3 | 2 | 1.5 | 2 | 7.8 | 8 | 275 | 0.6 | 0.5 | 47 |
| parallel | 2.1 | 2.8 | 0.75 | 2 | 11 | |||||||
| series | 4.2 | 1.4 | 3.0 | 8 | 11 | |||||||
| FL60STH56-2008AF | FL60STH56-2008BF | Unipolar | 3.6 | 2 | 1.8 | 3.6 | 11.7 | 8 | 400 | 0.77 | 0.7 | 56 |
| parallel | 2.52 | 2.8 | 0.9 | 3.6 | 16.5 | |||||||
| series | 5.04 | 1.4 | 3.6 | 14.4 | 16.5 | |||||||
| FL60STH65-2008AF | FL60STH65-2008BF | Unipolar | 4.8 | 2 | 2.4 | 4.6 | 15 | 8 | 570 | 1.2 | 0.9 | 67 |
| parallel | 3.36 | 2.8 | 1.2 | 4.6 | 21 | |||||||
| series | 6.72 | 1.4 | 4.8 | 18.4 | 21 | |||||||
| FL60STH86-2008AF | FL60STH86-2008BF | Unipolar | 6 | 2 | 3 | 6.8 | 22 | 8 | 840 | 1.4 | 1.0 | 88 |
| parallel | 4.17 | 2.8 | 1.5 | 6.8 | 31 | |||||||
| series | 8.4 | 1.4 | 6 | 27.2 | 31 | |||||||
