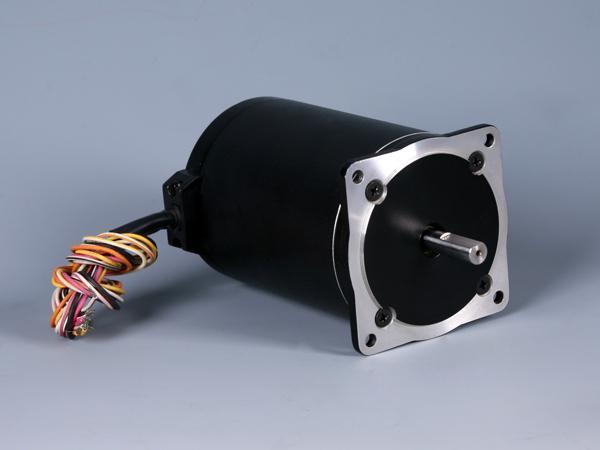

1.8 Degree Size 86mm Round High Torque 2-Phase Hybrid Stepper Motor
Features
High precision, large torque, small inertia, low noise
Application
Advertising industry: Engraving machine, printing machine
Textile industry: Flat knitting machine, circular knitting machine, computer jacquard hosiery machine
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 820V AC, 1s, 3mA |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Axial Force | 60N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length |
| V | A | Ω | mH | kg·cm | g·cm2 | kg | kg·cm | mm | ||
| FL86ST67-2808AH | 3.64 | 2.8 | 1.3 | 5.1 | 28 | 8 | 660 | 1.6 | 1.2 | 67 |
| FL86ST94-2808AH | 4.76 | 2.8 | 1.7 | 7.7 | 48 | 8 | 1200 | 2.4 | 1.8 | 94 |
| FL86ST125-3508AH | 4.97 | 3.5 | 1.42 | 7.9 | 76 | 8 | 1800 | 3.6 | 2.3 | 125 |
Related Names
Low Inertia Hybrid Step Motor | Round-shaped Stepping Motor for Cylinder Screen Printing Device | Printing Machine Used 2-phase Hybrid Stepper Electric Machine
