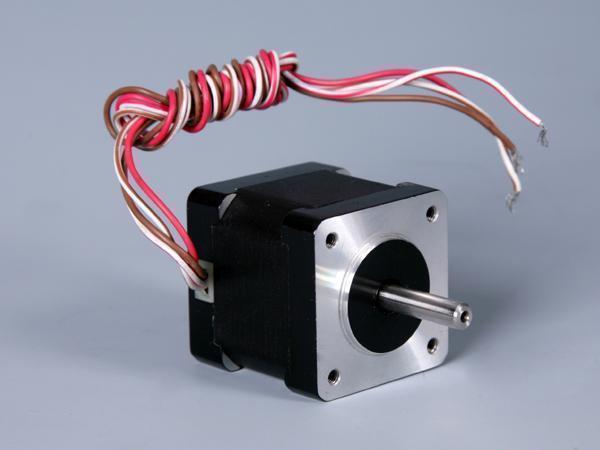

1.8 Degree Size 35mm 2-Phase High Torque Hybrid Stepper Motor
1.8º Size 35mm High Torque Hybrid Stepper Motor
Features
Small size, high precision, high stability
Application
Medical industry: Body fluid analyzer, cardiac diagnostic systems, infusion pump, nutrition supplement pump, biochemical analyzer, blood cell analyzer, etc.
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 28N (20mm from the flange) |
| Max. Axial Force | 10N |
| Rotation | CW( See from the front flange) |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | g·cm | g·cm2 | kg | mm | |
| FL35ST26-0284A | FL35ST26-0284B | 7.4 | 0.28 | 26 | 27 | 700 | 4 | 10 | 0.13 | 26 |
| FL35ST28-0504A | FL35ST28-0504B | 10 | 0.5 | 20 | 14 | 1000 | 4 | 11 | 0.14 | 28 |
| FL35ST36-1004A | FL35ST36-1004B | 2.7 | 1.0 | 2.7 | 4.3 | 1400 | 4 | 14 | 0.18 | 36 |
