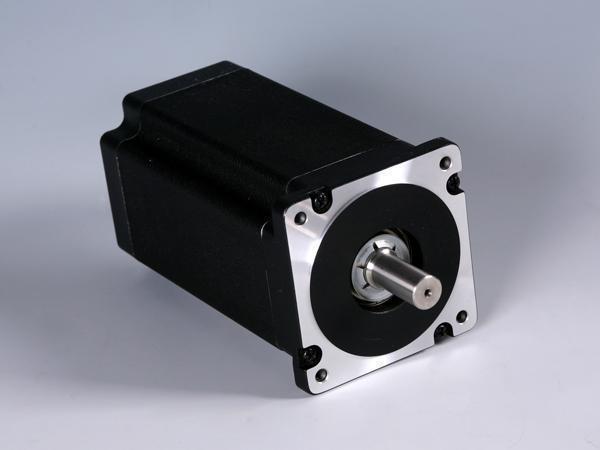

1.8 Degree Size 86mm 2-Phase High Torque Hybrid Stepper Motor
Features
Large torque, high precision, low noise
Application
New energy industry: Solar equipment
Home appliance industry: Coffee machine
Communication industry: Tracking device
Scientific instrument industry: Ultrasonic facilities
Medical industry: Pharmaceutical ampoule printing machine
Textile industry: Flat knitting machine, industrial sewing machine
Advertising industry: Engraving machine, laser machine, packaging machinery, word bending machine
Industrial automation industry: CNC machine tool, winding machine, wire stripping machine, diamond cutting machine, metal sawing machine
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min. ,500V DC |
| Dielectric Strength | 820V AC, 1s, 3mA |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Axial Force | 60N |
| Model No. | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque (Bipolar) | Number of Leads | Rotor Inertia | Weight | Detent Torque | Diameter of Output Shaft | Length | |
| Single Shaft | Double Shaft | A | Ω | mH | Kg·cm | # | g·cm2 | kg | kg·cm | mm | mm |
| FL86STH65-5904A | FL86STH65-5904B | 5.9 | 0.29 | 1.7 | 33 | 4 | 1000 | 1.7 | 0.8 | 12 | 65 |
| FL86STH65-2808A | FL86STH65-2808B | 2.8 | 1.3 | 3.9 | 33 | 8 | |||||
| FL86STH80-5504A | FL86STH80-5504B | 5.5 | 0.42 | 3.5 | 45 | 4 | 1400 | 2.3 | 1.2 | 12.7 | 80 |
| FL86STH80-4208A | FL86STH80-4208B | 4.2 | 0.8 | 3.5 | 45 | 8 | |||||
| FL86STH118-6004A | FL86STH118-6004B | 6 | 0.5 | 6.0 | 85 | 4 | 2700 | 3.8 | 2.4 | 12.7 | 118 |
| FL86STH118-4208A | FL86STH118-4208B | 4.2 | 1.2 | 6.5 | 85 | 8 | |||||
| FL86STH156-6204A | FL86STH156-6204B | 6.2 | 0.72 | 9 | 122 | 4 | 4000 | 5.3 | 3.6 | 15.875 | 156 |
| FL86STH156-4208A | FL86STH156-4208B | 4.2 | 1.46 | 8.68 | 122 | 8 | |||||
