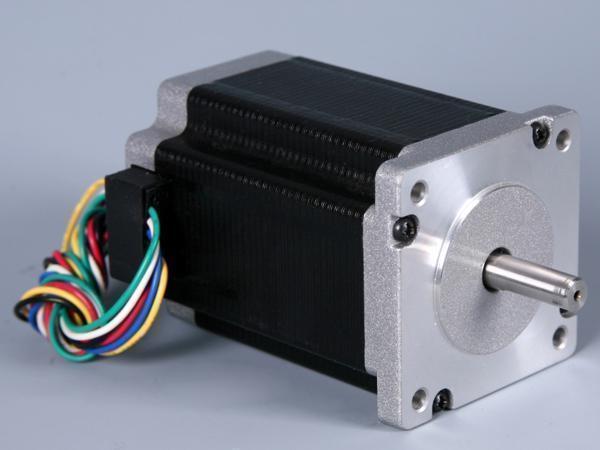

- 1.8 Degree Size 57mm 2-Phase High Torque Hybrid Stepper Motor
1.8 Degree Size 57mm 2-Phase High Torque Hybrid Stepper Motor
Features
Large torque, high precision, smooth running
Application
Textile industry: Flat knitting machine, circular knitting machine, bobbin winder
Medical industry: Biochemical analyzer, blood cell analyzer
Industrial automation industry: Semiconductor testing equipment, winding machine, stripping machine
Advertising industry: Laser machine, engraving machine, marking machine, inkjet printer
Water treatment industry: Screw pump
Bank equipment: ATM
Others: Metro fare collection system, etc.
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
| Rotation | CW( See from Front Flange) |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | kg·cm | mm | |
| FL57STH56-1006A | FL57STH56-1006B | 7.4 | 1 | 7.4 | 10 | 9.0 | 6 | 300 | 0.7 | 0.4 | 56 |
| FL57STH56-2006A | FL57STH56-2006B | 3.6 | 2 | 1.8 | 2.5 | 9.0 | 6 | ||||
| FL57STH56-3006A | FL57STH56-3006B | 2.3 | 3 | 0.75 | 1.1 | 9.0 | 6 | ||||
| FL57STH56-2804A | FL57STH56-2804B | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 4 | ||||
| FL57STH76-1006A | FL57STH76-1006B | 8.6 | 1 | 8.6 | 14 | 13.5 | 6 | 480 | 1 | 0.68 | 76 |
| FL57STH76-2006A | FL57STH76-2006B | 4.5 | 2 | 2.25 | 3.6 | 13.5 | 6 | ||||
| FL57STH76-3006A | FL57STH76-3006B | 3 | 3 | 1 | 1.6 | 13.5 | 6 | ||||
| FL57STH76-2804A | FL57STH76-2804B | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 4 | ||||
Related Names
Smooth Operated High Torque Stepper Motor | Hybrid Step Motor for Computer Jacquard Hosiery Device | Industrial Sewing Machine Used 2-phase Stepping Electric Machine
