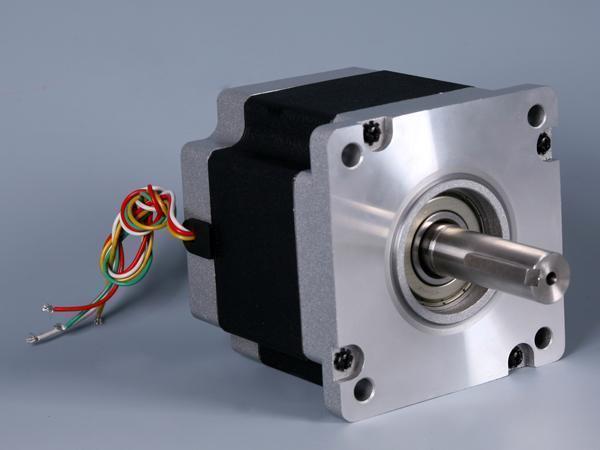

Size 110mm 3-Phase Hybrid Stepper Motor
Features
High torque, high precision, good high-speed performance
Application
Textile industry: Rotary screen printing presses
Medical industry: pharmaceutical ampoule printer, automatic strapping machine
Advertising industry: engraving machine, laser machine
Vehicle industry: electric vehicles
Home appliance industry: coffee machine
| Parameter | Value |
| Step Angle | 1.2º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 1800V AC, 1s, 5mA |
| Radial Play | 0.02 Max. (450g-load) |
| Axial Play | 0.08 Max. (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Axial Force | 60N |
| Model No. | Max. Starting Speed | Rated Voltage | Current per Phase | Holding Torque | Rated Torque | Rotor Inertia | Weight | Length |
| Rpm/s | V DC | A | N·m | N·m | g·cm2 | Kg | mm | |
| FL1103P170-01 | 4.7 | 325 | 4.1 | 13.92 | 12 | 10500 | 8 | 173 |
