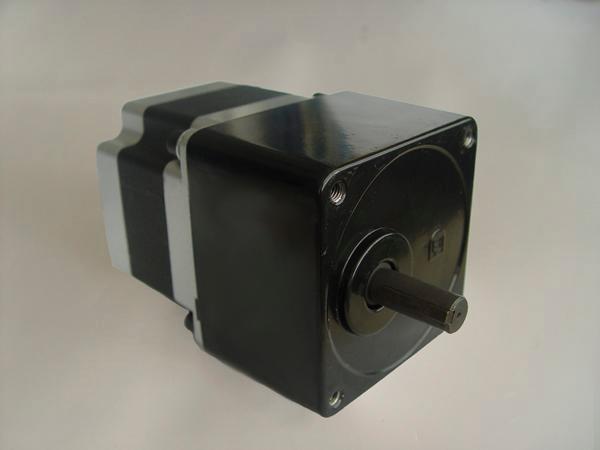

86mm Hybrid Stepper Motor with 90mm Spur Gearbox

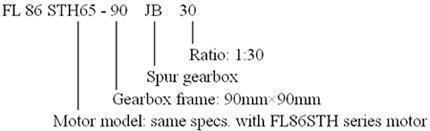

FL86STHJB Gearbox Stepper Motor
Features
Low speed, high torque, low noise
Application
Textile industry: Flat knitting machine, industrial sewing machine
Medical industry: Pharmaceutical ampoule printing machine
Advertising industry: Laser machine, engraving machine
New energy industry: Tracking device, solar equipment
Home appliance industry: Coffee machine
Industrial automation industry: CNC machine tool, ultrasonic equipment, winding machine, stripping machine
| Ratio | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 |
| Weight | 1.3kg | 1.5kg | ||||||||||||||||||
| Number of Gear Trains | 2 | 3 | 4 | |||||||||||||||||
| Nominal Torque | 30N·m | |||||||||||||||||||
| Ultimate Torque | 45N·m | |||||||||||||||||||
| Efficiency | 81% | 73% | 66% | |||||||||||||||||
| No-load Average Backlash | 4 deg | 3.5deg | 2.5deg | |||||||||||||||||
| Ratio | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | |
| FL86STH65-90JB | Torque (N·m) (at 1333pps full step) | 3.6 | 6 | 7.2 | 9.1 | 10.9 | 12.1 | 15.1 | 18.2 | 19.7 | 21.9 | 27.3 | 32.8 | 39.4 | 39.6 | --- | --- | --- | --- | --- | --- |
| Speed (pps) | 444 | 266 | 222 | 177 | 148 | 133 | 107 | 89 | 74 | 67 | 53 | 44 | 37 | 33 | --- | --- | --- | --- | --- | --- | |
| FL86STH80-90JB | Torque (N·m) (at 1333pps full step) | 4.8 | 8.1 | 9.7 | 12.1 | 14.6 | 16.2 | 20.2 | 24.3 | 26.2 | 29.2 | 36.5 | 43.8 | --- | --- | --- | --- | --- | --- | --- | --- |
| Speed (pps) | 444 | 266 | 222 | 177 | 148 | 133 | 107 | 89 | 74 | 67 | 53 | 44 | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL86STH118-90JB | Torque (N.m) (at 1333pps full step) | 9.7 | 16.2 | 19.4 | 24.3 | 29.1 | 32.4 | 40.5 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| Speed (pps) | 444 | 266 | 222 | 177 | 148 | 133 | 107 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL86STH156-90JB | Torque (N·m) (at 1333pps full step) | 12.1 | 20.2 | 24.3 | 30.3 | 36.4 | 40.5 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| Speed (pps) | 444 | 266 | 222 | 177 | 148 | 133 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
