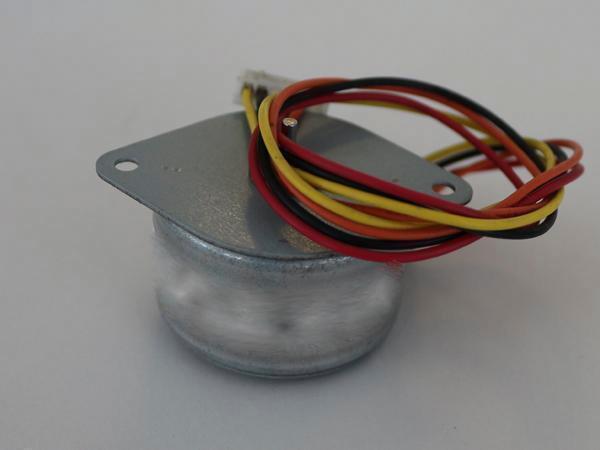

PM15/20/25 Series Permanent Magnet Stepper Motor
Features
Low cost, fast dynamic response, high efficiency, and low noise
| Item | Specifications |
| Step Angle Accuracy | ±8 % (full step, no load) |
| Resistance Accuracy | ± 10% |
| Inductance Accuracy | ± 20% |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.06Max. (450 g-load) |
| Axial Play | 0.08Max. (450 g-load) |
| Model | Step Angle (Deg.) | No. of Phase | Voltage (V) | Current per Phase (A) | Resistance per Phase (Ω) | Holding Torque (g·cm) | Detent Torque (g·cm) | Rotor Inertia (g·cm2) | Wire Diagram |
| PM1512-01 | 18 | 2 | 12 | 0.04 | 300 | 40 | 10 | < 1 | A |
| PM1512-02 | 18 | 2 | 5 | 0.5 | 10 | 27 | 6 | c | |
| PM1512-03 | 18 | 2 | 12 | 0.065 | 190 | 40 | 10 | c | |
| PM2018-01 | 18 | 4 | 12 | 0.24 | 50 | 80 | 25 | B | |
| PM2018-02 | 18 | 2 | 5 | 0.5 | 10 | 60 | 20 | A | |
| PM2516-01 | 15 | 4 | 9 | 0.45 | 20 | 140 | 75 | B | |
| PM2516-02 | 15 | 4 | 12 | 0.4 | 30 | 130 | 75 | B | |
| PM2515-01 | 7.5 | 2 | 12 | 0.24 | 50 | 170 | 45 | A | |
| PM2515-02 | 7.5 | 4 | 12 | 0.25 | 50 | 160 | 35 | B | |
| PM2515-03 | 7.5 | 4 | 5 | 0.5 | 10 | 120 | 45 | B | |
| PM2515-04 | 7.5 | 2 | 5 | 0.5 | 10 | 110 | 40 | A |
