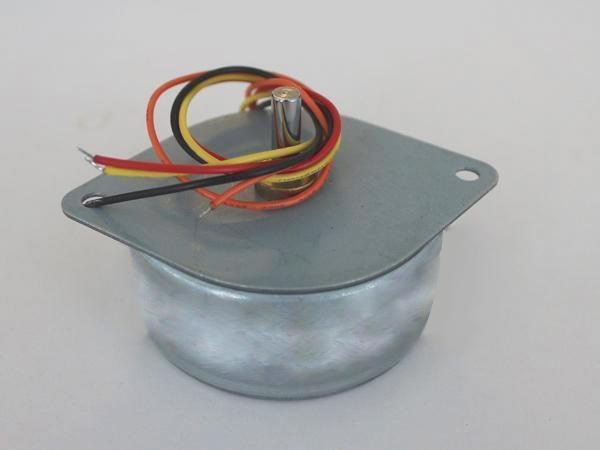

PM35/42/49/57 Series Permanent Magnet Stepper Motor
Features
High efficiency, fast dynamic response, low noise, and low cost
| Item | Specifications |
| Step Angle Accuracy | ±8 % (full step, no load) |
| Resistance Accuracy | ± 10% |
| Inductance Accuracy | ± 20% |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.06Max. ( 450 g-load) |
| Axial Play | 0.08Max. (450 g-load) |
| Model | Step Angle (Deg.) | No. of Phase | Voltage (V) | Current per Phase (A) | Resistance per Phase (Ω) | Holding Torque (g·cm) | Detent Torque (g·cm) | Rotor Inertia (g·cm2) | Wire Diagram |
| PM3522-01A | 15 | 2 | 5 | 0.46 | 11 | 335 | 125 | 7.5 | A |
| PM3522-02A | 15 | 4 | 5 | 0.46 | 11 | 300 | B | ||
| PM3522-01B | 7.5 | 4 | 5 | 0.862 | 5.8 | 550 | |||
| PM3522-02B | 7.5 | 2 | 5 | 0.5 | 10 | A | |||
| PM3522-03B | 7.5 | 2 | 12 | 0.2 | 608 | ||||
| PM3516-01 | 7.5 | 4 | 12 | 0.255 | 47 | 300 | 65 | B | |
| PM3516-02 | 7.5 | 2 | 5 | 0.42 | 12 | 350 | 75 | A | |
| PM4222-01A | 7.5 | 4 | 12 | 0.8 | 15 | 800 | 210 | 9.6 | B |
| PM4222-02A | 7.5 | 2 | 4.2 | 0.6 | 7 | 800 | 210 | A | |
| PM4222-01B | 7.5 | 2 | 12 | 0.13 | 95 | 550 | 100 | 7.5 | |
| PM4222-02B | 7.5 | 4 | 5 | 0.81 | 6.2 | 600 | 110 | B | |
| PM4217-01 | 7.5 | 4 | 12 | 0.24 | 50 | 600 | 90 | 9.6 | |
| PM4217-02 | 7.5 | 2 | 5 | 0.59 | 8.6 | 500 | 100 | A | |
| PM4930-01 | 7.5 | 2 | 5 | 0.9 | 5.5 | 1700 | 350 | < 14.5 | |
| PM5725-01 | 7.5 | 4 | 12 | 0.6 | 21 | 1500 | 425 | < 12.5 | B |
| PM5725-02 | 7.5 | 2 | 5.6 | 0.625 | 9 | 1200 | A |
