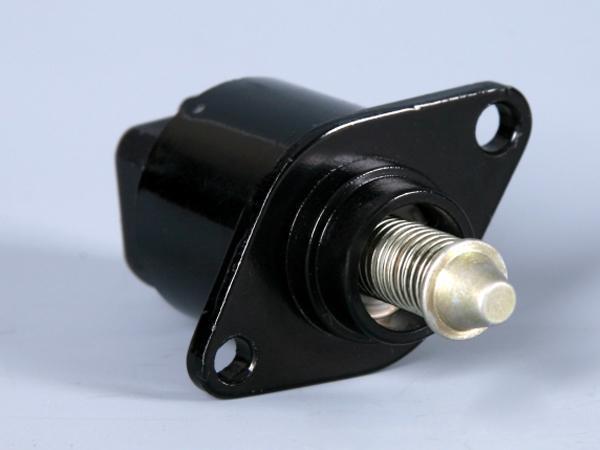

35/57mm Series PM Linear Stepper Motor
Features
Linear movement, fast dynamic response, low noise
Captive, Non Captive
| Model | Step Angle (Deg.) | No. of Phase | Voltage (V) | Current (A) | Resistance (Ω) | Step Length (mm) | Nominal Thrust or Pulling Force (N) | Journey (mm) |
| 35BY42z01A-02 | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z01B-09 | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z01B-10 | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z01B-10T | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z01B-01TA | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z01B-01TB | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 35BY42Z02C-08 | 15 | 2 | 12 | 0.23 | 53 | 0.0417 | 25 | 12 |
| 57BYZ01-B01 | 7.5 | 4 | 12 | 0.48 | 25 | 0.025 | 31 | 12 |
