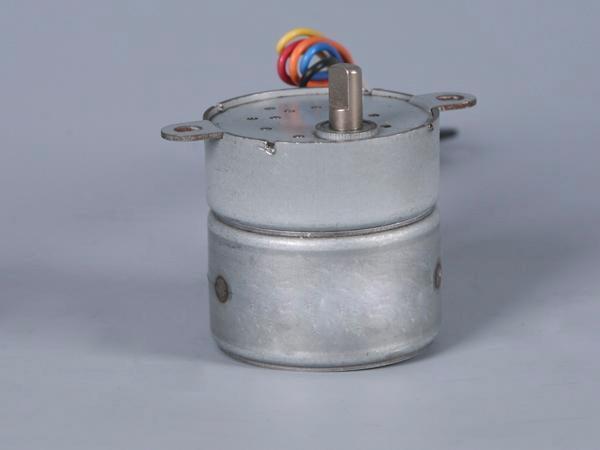

- PMG25/35 Series Geared Stepper Motor
PMG25/35 Series Geared Stepper Motor
Features
High torque, fast dynamic response, low noise, low cost
Application
Household appliance industry: Air conditioners, refrigerators, intelligent sanitary ware, automatic door locks
Industrial control industry: Monitor, electronic meter, valve control system
Office automation industry: Dot matrix printer, fax, scanner
Vehicle industry: Throttle, etc.
| Item | Parameter Value |
| Step Angle Accuracy | ± 7% (full step, no load) |
| Resistance Accuracy | ± 10% |
| Temperature rise | 80℃ Max. (rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 650V AC, 1s, 3mA |
| Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (V) | Current per Phase (A) | Resistance per Phase (Ω) | Holding Torque (g·cm) | Detent Torque (g·cm) | Gear Ratio | Wire Diagram |
| PMG2505-01 | 7.5/5 | 2 | 2.6 | 0.52 | 5 | 450 | < 150 | 1:5 | A |
| PMG2505-02 | 15/5 | 2 | 3.5 | 0.365 | 9.6 | 500 | < 150 | 1:5 | |
| PMG2510-01 | 7.5/10 | 2 | 2.8 | 0.467 | 6 | 1400 | < 500 | 1:10 | |
| PMG2530-01 | 7.5/30 | 4 | 13.3 | 0.11 | 120 | 4000 | < 1400 | 1:30 | B |
| PMG3519-01 | 7.5/19 | 4 | 24 | 0.218 | 110 | 1200 | < 2280 | 1:19.25 | C |
| PMG3519-02 | 7.5/19 | 4 | 12 | 0.4 | 30 | 1000 | < 2600 | 1:19.25 | |
| PMG3508-01 | 7.5/8.4 | 4 | 12 | 0.4 | 30 | 4100 | < 500 | 1:8.4 | |
| PMG3530-01 | 7.5/30 | 4 | 12 | 0.4 | 30 | 15000 | < 1500 | 1:30 | |
| PMG3560-01 | 7.5/60 | 4 | 12 | 0.4 | 30 | 28000 | < 3000 | 1:60 | |
| PMG35120-01 | 7.5/120 | 12 | 0.4 | 30 | 50000 | < 6000 | 1:120 |
