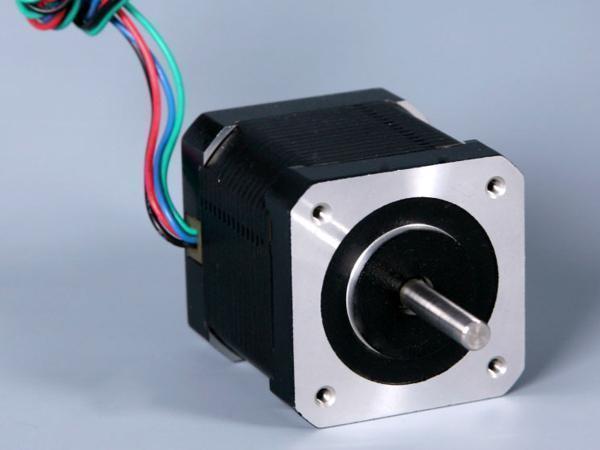

0.9 Degree Size 42mm 2-Phase High Torque Hybrid Stepper Motor
0.9º Size 42mm High Torque Hybrid Stepper Motor
Features
High output torque, high resolution, high-precision positioning, small vibration
Application
Advertising industry: Marking machine
Medical industry: Biochemical analyzer, blood cell analyzer
| Item | Specifications |
| Step Angle | 0.9º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min.,500VDC |
| Dielectric Strength | 500VAC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 28N (20mm from the flange) |
| Max. Axial Force | 10N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | kg·cm | g·cm2 | kg | g·cm | mm | |
| FL42STH33-0956MA | FL42STH33-0956MB | 4 | 0.95 | 4.2 | 4 | 1.58 | 6 | 35 | 0.22 | 200 | 33 |
| FL42STH33-0606MA | FL42STH33-0606MB | 6 | 0.6 | 10 | 9.5 | 1.58 | 6 | ||||
| FL42STH33-0316MA | FL42STH33-0316MB | 12 | 0.31 | 38.5 | 33 | 1.58 | 6 | ||||
| FL42STH33-1334MA | FL42STH33-1334MB | 2.8 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | ||||
| FL42STH38-1206MA | FL42STH38-1206MB | 4 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 54 | 0.28 | 220 | 40 |
| FL42STH38-0806MA | FL42STH38-0806MB | 6 | 0.8 | 7.5 | 6.7 | 2.59 | 6 | ||||
| FL42STH38-0406MA | FL42STH38-0406MB | 12 | 0.4 | 30 | 30 | 2.59 | 6 | ||||
| FL42STH38-1684MA | FL42STH38-1684MB | 2.8 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | ||||
| FL42STH47-1206MA | FL42STH47-1206MB | 4 | 1.2 | 3.3 | 4 | 3.17 | 6 | 68 | 0.35 | 250 | 48 |
| FL42STH47-0806MA | FL42STH47-0806MB | 6 | 0.8 | 7.5 | 10 | 3.17 | 6 | ||||
| FL42STH47-0406MA | FL42STH47-0406MB | 12 | 0.4 | 30 | 38 | 3.17 | 6 | ||||
| FL42STH47-1684MA | FL42STH47-1684MB | 2.8 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | ||||
