- 1.8 Degree Size 39mm 2-Phase Hybrid Stepper Motor
1.8 Degree Size 39mm 2-Phase Hybrid Stepper Motor

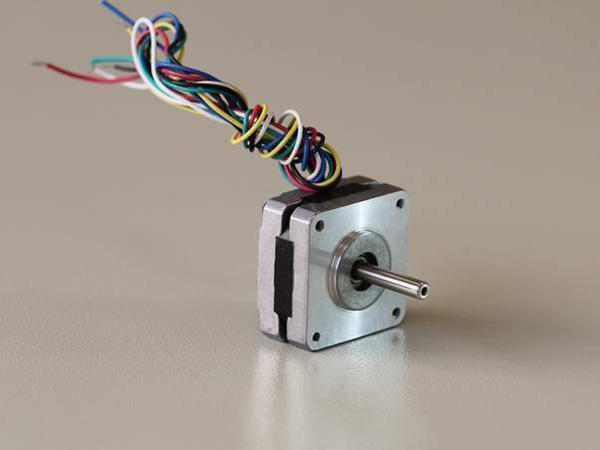

1.8º Size 39mm High Torque Hybrid Stepper Motor
Features
High precision, small inertia, high stability
Application
Textile: Bobbin winder
Medical industry: Humoral analyzer
Advertising industry: Warning light
Scientific instrument Industry: Spectrometer, chromatograph
Security industry: CCTV
Others: Control valve, etc.
| Item | Specifications |
| Step Angle | 1.8º |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Dielectric Strength | 500V AC for one minute |
| Radial Play | 0.02 Max. (450 g-load) |
| Axial Play | 0.08 Max. (450 g-load) |
| Max. Radial Force | 28N (20mm from the flange) |
| Max. Axial Force | 10N |
| Model | Rated Voltage | Current per Phase | Resistance per Phase | Inductance per Phase | Holding Torque | Number of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | g·cm | g·cm2 | kg | g·cm | mm | |
| FL39ST20-0404A | FL39ST20-0404B | 2.64 | 0.4 | 6.6 | 7.5 | 650 | 4 | 11 | 0.12 | 50 | 20 |
| FL39ST20-0506A | FL39ST20-0506B | 6.5 | 0.5 | 13 | 7.5 | 800 | 6 | ||||
| FL39ST34-0404A | FL39ST34-0404B | 12 | 0.4 | 30 | 32 | 2100 | 4 | 20 | 0.18 | 120 | 34 |
| FL39ST34-0306A | FL39ST34-0306B | 12 | 0.3 | 40 | 20 | 1300 | 6 | ||||
| FL39ST38-0504A | FL39ST38-0504B | 12 | 0.5 | 24 | 45 | 2900 | 4 | 24 | 0.2 | 180 | 38 |
| FL39ST38-0806A | FL39ST38-0806B | 6 | 0.8 | 7.5 | 6 | 2000 | 6 | ||||
| FL39ST44-0304A | FL39ST44-0304B | 12 | 0.3 | 40 | 100 | 2800 | 4 | 40 | 0.25 | 250 | 44 |
