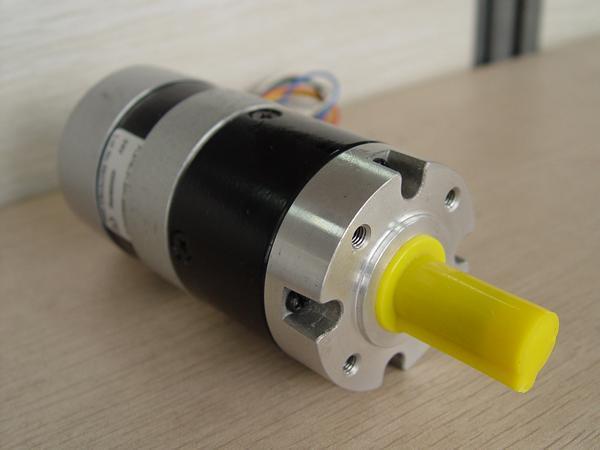

57mm Brushless Motor with 56mm Planetary Gearbox
FL57BLXX-36V-56JX300K
Features
Planetary gearbox, high efficiency, stable running, low noise, long life
Application
Food industry: Ice cream machine
Household appliance industry: Mower
Water treatment industry: Fluid pumps
Advertising industry: Rapid prototyping machine
Communication industry: Navigation satellite antenna
Scientific instrument industry: Coal quality analytical instrument
Industrial automation industry: Winding machine, automatic door, etc.
| Model | FL57BL01-36V | FL57BL02-36V | FL57BL03-36V | FL57BL04-36V |
| Number of Poles | 4 | |||
| Number of Phases | 3 | |||
| Rated Voltage V DC | 36 | |||
| Rated Speed RPM | 4000 | |||
| Rated Torque N·m | 0.11 | 0.22 | 0.32 | 0.44 |
| Rated Power W | 46 | 92 | 134 | 184 |
| Phase to Phase Resistance Ω | 1.5 | 0.7 | 0.45 | 0.38 |
| Phase to Phase Inductance mH | 4.2 | 2.16 | 1.5 | 1 |
| Torque Constant | 0.063 | 0.063 | 0.063 | 0.063 |
| Back-EMF Constant V/KRPM | 6.6 | 6.6 | 6.6 | 6.6 |
| Rotor Inertia g·cm2 | 75 | 119 | 173 | 230 |
| Body Length mm | 58 | 78 | 98 | 118 |
| Ratio | 3.6 | 4.25 | 13 | 15 | 18 | 47 | 55 | 65 | 76 | 168 | 198 | 234 | 276 | 326 |
| Number of Gear Trains | 1 | 2 | 3 | 4 | ||||||||||
| Length mm | 52 | 52 | 63.5 | 74.5(83) | ||||||||||
| Rated Load N·m | 1.5 | 5 | 10 | 15(30) | ||||||||||
| Short-time Peak Torque N·m | 4.5 | 15 | 30 | 45(90) | ||||||||||
| No-load Speed RPM | 1472 | 1247 | 408 | 353 | 294 | 113 | 96 | 85 | 70 | 32 | 27 | 23 | 19 | 16 |
| Rated Speed RPM | 1111 | 941 | 308 | 267 | 222 | 85 | 73 | 62 | 53 | 24 | 20 | 17 | 14 | 12 |
| Model | FL57BL01-36V-56JX300K | |||||||||||||
| Rated Torque N·m | 0.36 | 0.42 | 1.15 | 1.34 | 1.6 | 3.8 | 4.4 | 5.2 | 6 | 12 | 14.2 | 16.9 | 20 | 23.5 |
| Model | FL57BL02-36V-56JX300K | |||||||||||||
| Rated Torque N·m | 0.72 | 0.84 | 2.3 | 2.68 | 3.2 | 7.6 | 8.8 | 10.4 | 12 | 24 | 28.4 | |||
| Model | FL57BL03-36V-56JX300K | |||||||||||||
| Rated Torque N·m | 1 | 1.22 | 3.37 | 3.9 | 4.7 | 11 | 12.8 | 15 | 17.7 | |||||
| Model | FL57BL04-36V-56JX300K | |||||||||||||
| Rated Torque N·m | 1.44 | 1.68 | 4.6 | 5.36 | 6.4 | 15.2 | 17.6 | 20.8 | 24 | |||||
