- 24V/36V/48V Brushless DC Electric Motor Driver
24V/36V/48V Brushless DC Electric Motor Driver

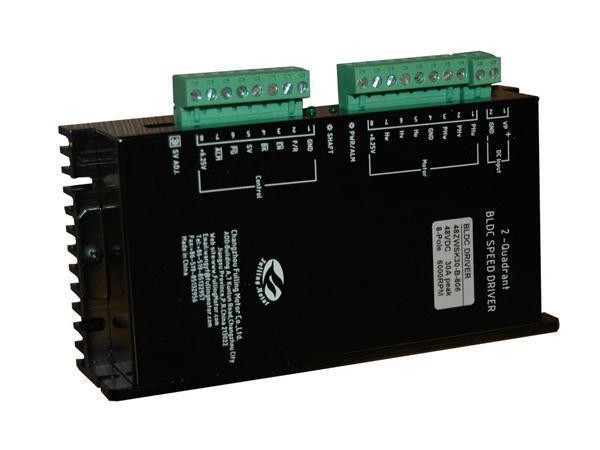

The 24/36/48ZWSK15 series of brushless DC electric motor driver features two-quadrant running. It has many functions, such as speed control, forward and reverse rotation control, speed signal output, and failure alarm.
Specification| Model | 24ZWSK15 | 36ZWSK15 | 48ZWSK15 |
| Voltage V DC | 24(30V max.) | 36(45V max.) | 48(56V max.) |
| Phase | 3-Phase | ||
| Peak Current A | 15 | 15 | 15 |
| Continuous Current A | 7.5 | 7.5 | 7.5 |
| Hall Sensor | 3 Hall sensors, 120 deg. (electrical angle), 6.25V operation | ||
| Inner DC Line Fuse A | 15 | 15 | 15 |
| Speed Raising Time s | 0.5-10 | ||
| Input Signals | 5V TTL or CMOS(6.25V max.) | ||
| Max. Speed (SV=4V,SV gain=1) | 1500rpm/3000rpm/6000rpm/12000rpm(Optional) | ||
| Speed Control Voltage Gain Adjustment | 0-1.0 (Gain=1 when SV adjusted to the Right) | ||
| Control Mode | PI speed close-loop control | ||
| Low Voltage Protection V | 16V min | 26V min | 36V min |
| Dimensions | 161.5mm×81.2mm×31mm | ||
| Chopping Frequency KHz | 15 | ||
| Weight Kg | 0.3 | ||
| Control signals: F/R----High=Forward, Low=Reverse; EN---High=Disable, Low=Enable; BK---Low=Motor brake, High=Operating; SV---Speed voltage input 0-5V; PG---Speed pulse output (OC output) 24 pulses/r at 8 poles; ALM---Alarm output (OC output), Low= Alarm. | |||
