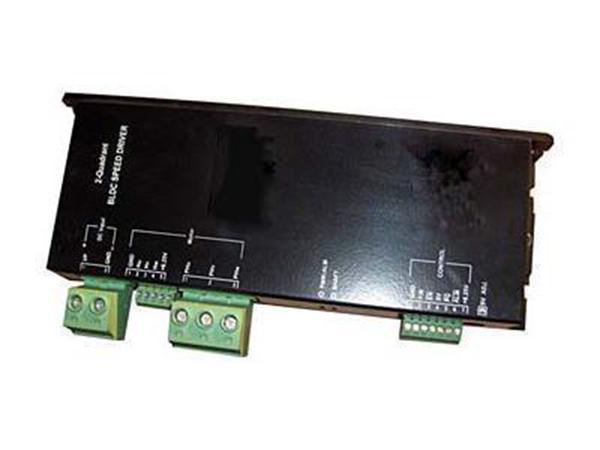

48V Brushless DC Electric Motor Driver
48ZWSK50-B
Features
Large current, two-quadrant running, forward and reverse rotation control, speed governing, speed signal output, failure alarm
| Model | 48ZWSK50-B |
| Voltage V DC | 48 (56V max.) |
| Phase | 3-Phase |
| Peak Current A | 50 |
| Continuous Current A | 25 |
| Hall Sensor | 3 Hall sensors, 120 deg. (electrical angle), 6.25V operation |
| Speed Raising Time s | 0.5-10 |
| Input Signal | 5V TTL or CMOS (6.25V max.) |
| Max. Speed (SV=4V,SV gain=1) | 1500rpm/3000rpm/6000rpm/12000rpm (Optional) |
| Speed Voltage (SV) Gain | 0-1.0 (Gain=1 when SV adjusted to the Right) |
| Control Mode | PI speed close-loop control |
| Low Voltage Protection V | 16V min. |
| Dimensions | 221mm×82mm×45mm |
| Chopping Frequency KHz | 10 |
| Weight Kg | 0.5 |
| Control signals: F/R----High=Forward, Low=Reverse; EN---High=Disable, Low=Enable; BK---Low=Motor brake, High=Operating; SV---Speed voltage input 0-5V; PG---Speed pulse output (OC output) 24pulses/r at 8 poles; ALM---Alarm output (OC output), Low= Alarm. | |
