60mm AC Servo Motor

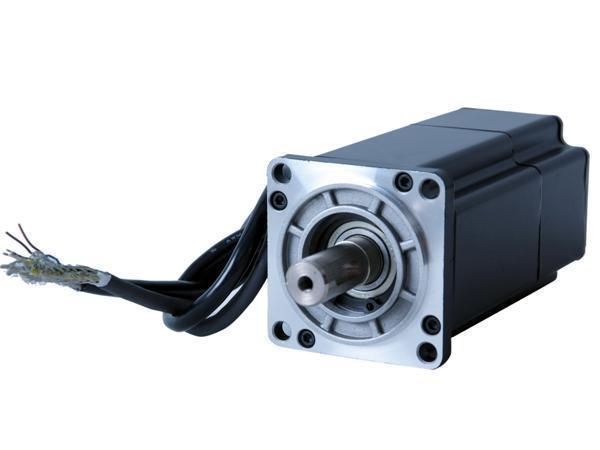

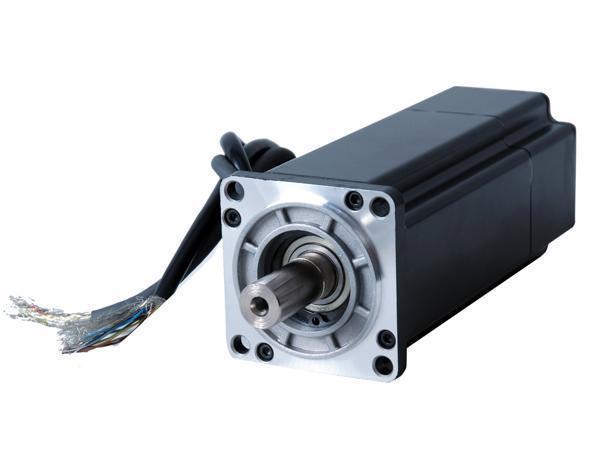

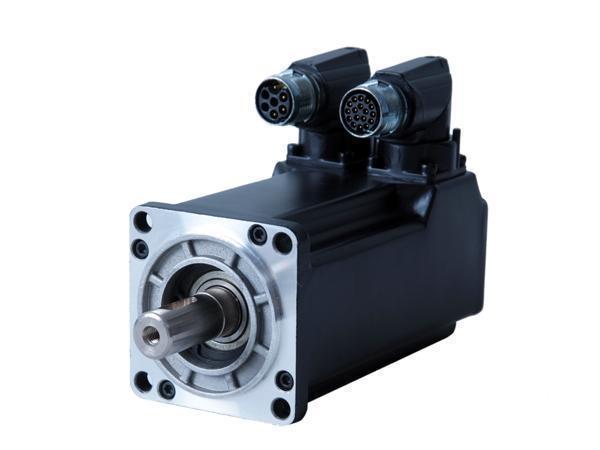

We own independent intellectual property rights over the SMH60 series of AC servo motor. This product adopts high-performance rare earth permanent magnet materials and has many advantages, such as small inertia, high power density, superstrong overload capacity, low torque ripple, low noise, beautiful appearance, etc.
Specification| Model | SMH60 - 203026xxL
SMH60 - 203026xxC SMH60 - 203026xxM |
SMH60 - 403026xxL
SMH60 - 403026xxC SMH60 - 403026xxM |
|
| Rated Power Pn (W) | 200 | 400 | |
| Rated Torque Tn (N·m) | 0.64 | 1.27 | |
| Rated Speed nn (rpm) | 3000 | 3000 | |
| Rated Current In (A) | 1.6 | 3.1 | |
| DC Link Voltage UDC (V) | 300 | 300 | |
| Maximum Torque Tm (N·m) | 1.92 | 3.81 | |
| Maximum Current Im (A) | 4.8 | 9.3 | |
| Standstill Torque Ts (N·m) | 0.7 | 1.4 | |
| Standstill Current Is (A) | 1.8 | 3.41 | |
| Voltage Constant Ke (V/krpm) | 29 | 29 | |
| Torque Constant Kt | 0.48 | 0.48 | |
| Line-line Resistance RL (Ω) | 8.02 | 3.52 | |
| Line-line Inductance LL (mH) | 16.3 | 7.8 | |
| Electrical Time Constant τe (ms) | 2.03 | 2.22 | |
| Mechanical Time Constant τm (ms) | 2.26 | 1.35 | |
| Rotor Moment of Inertia J m (kg·cm2) | 0.375 | 0.51 | |
| Number of Poles | 6 | 6 | |
| Max. Voltage Rising du/dt (kV/μ s) | 8 | 8 | |
| Insulation Class | F | F | |
| Max. Radial Force Fr (N) | 180 | 180 | |
| Max. Axial Force Fa (N) | 90 | 90 | |
| Weight (Kg) | 1.3 | 1.8 | |
| Position Feedback Device | 2500p/rev incremental encoder or Resolver (sin-cos) | ||
| Temperature Sensor | NA | ||
| Cooling Method | Fully enclosed, self-cooled | ||
| Protection Level | IP65, shaft sealing IP54 | ||
| Environmental Conditions | Temperature | -20℃~40℃ | |
| Humidity | Below 90%RH (No condensation) | ||
| Environment | Away from corrosive, flammable gas, oil droplets and dust | ||
| Installation Altitude | Max.4000m Above 1000m, power decreases by 1.5% per each increase of 100m | ||
| Rated Conditions | Mounting | Anodized aluminum heat dissipation plate 255mm × 255mm × 6mm | |
| Temperature | When the ambient temperature is 40℃, the housing temperature rise is 60K. | ||
Features
1. This cost-effective AC servo motor adopts the three-phase sine wave design and has excellent low-speed smoothing characteristic.
2. The insulation class reaches level F and there is a built-in temperature protector.
3. An incremental or absolute photoelectric encoder can be used and the rotary transformer is optional.
4. The product's protection class reaches IP65, enabling it to adapt to harsh environments.
5. Flexible vertical installation is adopted.
