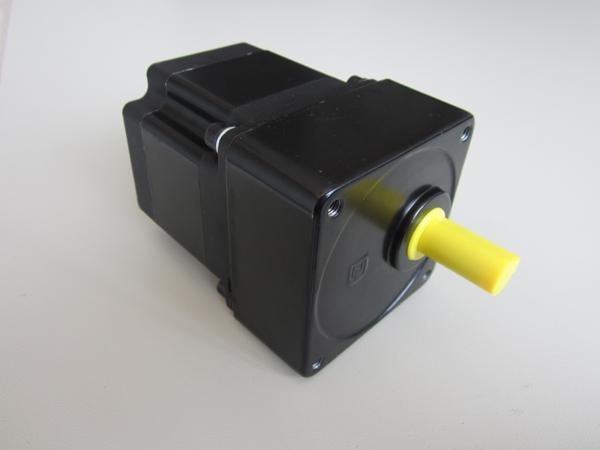

86mm Brushless Motor with Spur Gearbox

Home
Products
Brushless Gear Motor
86mm Brushless Motor with Spur Gearbox

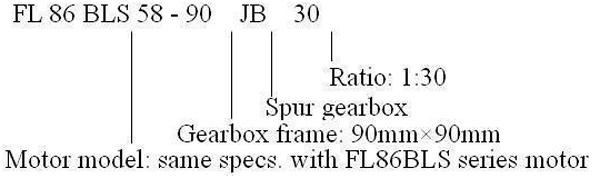

Model Description

Spur Gearbox Specifications

Ratio	3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
Weight	1.3kg								1.5kg
Number of Gear Trains	2								3					4
Nominal Torque	30N·m
Ultimate Torque	45N·m
Efficiency	81%								73%					66%
No-load Average Backlash	4 deg								3.5deg					2.5deg

Motor Specifications

Ratio		3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
FL86BLS58-90JB	Rated Torque (N·m)	0.85	1.42	1.70	2.13	2.55	2.84	3.54	4.25	4.60	5.11	6.38	7.67	9.20	9.24	11.6	13.8	17.3	20.8	23.1	27.7
	Rated Speed (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	40	33.3	30	25
	Ultimate Torque (N·m)	2.55	4.25	5.10	6.38	7.65	8.52	10.6	12.7	13.8	15.3	19.1	23	27.6	27.7	34.8	41.4	45
FL86BLS71-90JB	Rated Torque (N·m)	1.70	2.84	3.4	4.25	5.10	5.67	7.08	8.50	9.20	10.2	12.8	15.3	18.4	18.5	23.1	27.7	---	---	---	---
	Rated Speed (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	---	---	---	---
	Ultimate Torque (N·m)	5.1	8.52	10.2	12.7	15.3	17.0	21.2	25.5	27.6	30.6	38.4	45					---	---	---	---
FL86BLS98-90JB	Rated Torque (N·m)	3.4	5.67	6.80	8.50	10.2	11.3	14.2	17	18.4	20.4	25.5	30.6	---	---	---	---	---	---	---	---
	Rated Speed (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	---	---	---	---	---	---	---	---
	Ultimate Torque (N·m)	10.2	17.0	20.4	25.5	30.6	33.9	42.6	45					---	---	---	---	---	---	---	---
FL86BLS125-90JB	Rated Torque (N·m)	5.1	8.5	10.2	12.7	15.3	17.0	21.2	25.5	27.5	30.6	---	---	---	---	---	---	---	---	---	---
	Rated Speed (RPM)	1000	600	500	400	333	300	240	200	167	150	---	---	---	---	---	---	---	---	---	---
	Ultimate Torque (N·m)	15.3	25.5	30.6	38.1	45						---	---	---	---	---	---	---	---	---	---
