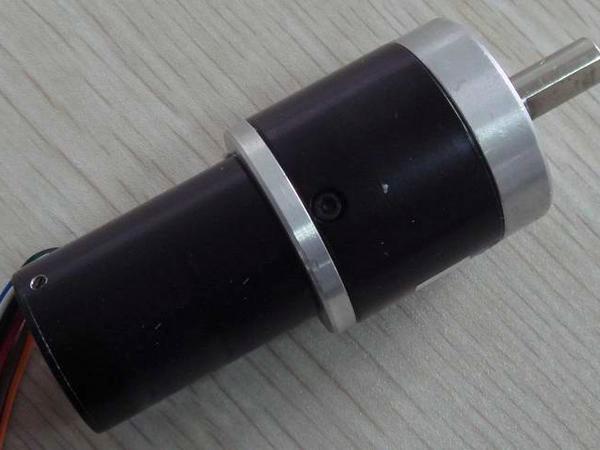

28mm Brushless Motor with 36mm Planetary Gearbox
Equipped with a 36mm planetary gearbox, the FL28BL38-2450/2460 model of brushless motor can achieve low speed and high torque output. It is small in size and runs stably. It is used in the advertising industry and vehicle industry, such as the advertising light box, car cushion massage pump, etc.
Motor Specification| Model | FL28BL38-2450 | FL28BL38-2460 |
| Number of Poles | 4 | 4 |
| Number of Phases | 3 | 3 |
| Rated Voltage V DC | 24 | 24 |
| Rated Speed RPM | 3450 | 4350 |
| Rated Torque mN·m | 9 | 10 |
| Rated Power W | 2.9 | 3.5 |
| Rated Current A | 0.30 | 0.35 |
| Peak Current A | 0.90 | 1.05 |
| Resistance Ω | 31 | 19 |
| Inductance mH | 11.8 | 7.8 |
| Ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 264 |
| No. of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 |
| Short-time Max. Permissible Load Kg·cm | 10 | 10 | 30 | 30 | 30 | 60 | 60 | 60 | 60 | 60 |
| FL28BL38-2450-36JX30K | ||||||||||
| No-load Speed | 1351 | 961 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 19 |
| Rated Speed RPM | 932 | 663 | 246 | 181 | 127 | 67 | 48 | 34 | 24 | 13 |
| Rated Torque mN·m | 30 | 42 | 102 | 128 | 196 | 334 | 465 | 656 | 912 | 1558 |
| FL28BL38-2460-36JX30K | ||||||||||
| No-load Speed RPM | 1621 | 1153 | 428 | 315 | 222 | 117 | 84 | 60 | 43 | 22 |
| Rated Speed RPM | 1175 | 836 | 310 | 228 | 161 | 85 | 61 | 43 | 31 | 16 |
| Rated Torque mN·m | 33.3 | 46.8 | 113 | 154 | 218 | 371 | 517 | 729 | 1013 | 1732 |
