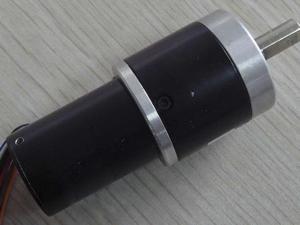

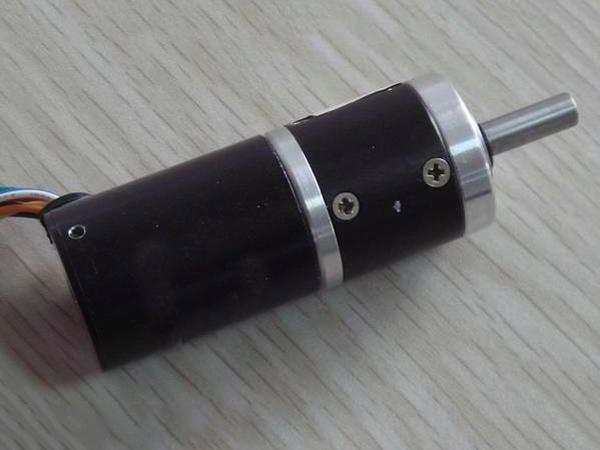

28mm Brushless Motor with 28mm Planetary Gearbox
The FL28BL38-24XX model of brushless motor is equipped with a 28mm planetary gearbox. Small in size, it runs stably and can achieve low speed and high torque output. This product is widely used in the vehicle industry (like car cushion massage pump, etc.) and advertising industry (such as light boxes, etc.).
Motor Specification| Model | FL28BL38-2430 | FL28BL38-2440 |
| Number of Poles | 4 | 4 |
| Number of Phases | 3 | 3 |
| Rated Voltage V DC | 24 | 24 |
| Rated Speed RPM | 2000 | 2700 |
| Rated Torque mN·m | 5 | 7 |
| Rated Power W | 1.0 | 1.9 |
| Rated Current A | 0.15 | 0.20 |
| Peak Current A | 0.45 | 0.60 |
| Resistance Ω | 93.3 | 55 |
| Inductance mH | 28 | 18.3 |
| Ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 264 |
| No. of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 31.5 | 31.5 | 40 | 40 | 40 | 48.5 | 48.5 | 48.5 | 48.5 | 57.5 |
| Short-time Max. Permissible Load Kg·cm | 5 | 5 | 10 | 10 | 10 | 30 | 30 | 30 | 30 | 30 |
| FL28BL38-2430-28JX20K | ||||||||||
| No-load Speed | 810 | 577 | 214 | 158 | 111 | 59 | 42 | 30 | 21 | 11 |
| Rated Speed RPM | 540 | 384 | 142 | 105 | 74 | 39 | 28 | 20 | 14 | 7 |
| Rated Torque mN·m | 16.7 | 23.4 | 56.7 | 77 | 109 | 186 | 259 | 365 | 507 | 866 |
| FL28BL38-2440-28JX20K | ||||||||||
| No-load Speed RPM | 1081 | 769 | 285 | 210 | 148 | 78 | 56 | 40 | 28 | 15 |
| Rated Speed RPM | 729 | 519 | 192 | 192 | 100 | 52 | 38 | 27 | 19 | 10 |
| Rated Torque mN·m | 23.3 | 32.7 | 79.4 | 107 | 153 | 260 | 362 | 510 | 709 | 1347 |
