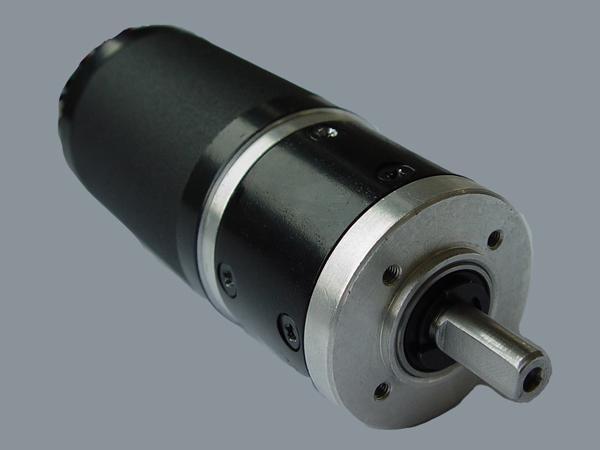

42mm Round Brushless Motor with 48mm Planetary Gearbox
FL42RBL60-2440-48JXG50K
Features
Planetary gearbox, smooth running, low noise, high efficiency, long life
Application
Household appliance industry: Hair dryer
Vehicle Industry: Engineering car air filter
Industrial automation industry: Automatic door, electronic component
Scientific instrument industry: Environment detector, mine gas detector
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Others: Optical correction industry, etc.
| Model | FL42RBL60-2440-48JXG50K |
| Number of Poles | 8 |
| Number of Phases | 3 |
| Rated Voltage V DC | 24 |
| Rated Speed RPM | 2800 |
| Rated Torque N·m | 0.07 |
| Rated Power W | 20.5 |
| Rated Current A | 1.4 |
| Peak Current A | 4.2 |
| Resistance Ω | 2.98 |
| Inductance mH | 3.50 |
| Ratio | 15 | 19 | 24 | 56 | 71 | 91 | 116 |
| No. of Gear Trains | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Length mm | 48 | 48 | 48 | 52.5 | 52.5 | 52.5 | 52.5 |
| Short-time Max. Permissible Load Kg·cm | 60 | 60 | 60 | 150 | 150 | 150 | 150 |
| No-load Speed RPM | 266 | 210 | 166 | 71 | 56 | 44 | 34 |
| Rated Speed RPM | 186 | 147 | 116 | 50 | 39 | 30 | 24 |
| Rated Torque N·m | 0.85 | 1.08 | 1.36 | 2.86 | 3.63 | 4.65 | 5.92 |
