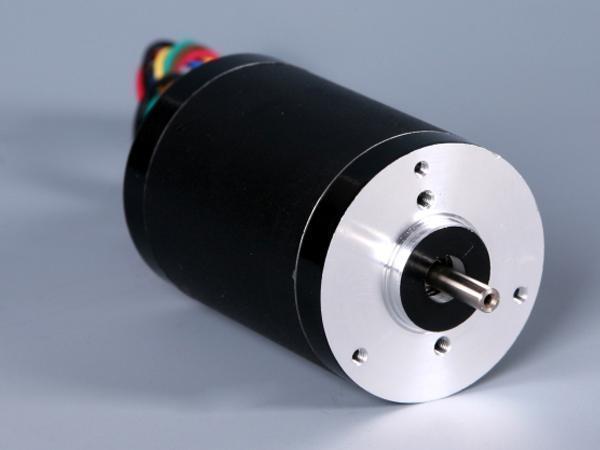

42mm Round Flange Brushless Motor
Features
High power density, NEMA17 standard, fastening structure
Application
Vehicle Industry: Engineering car air filter
Household appliance industry: Hair dryer
Industrial automation industry: Electronic components, automatic doors
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: Mine gas detector, coal quality analytical instruments, environment detector, precision computer embedded devices
Others: Optical correction industry, etc.
| Winding Connection Mode | Star |
| Hall Distribution Angle | 120 degree electrical angle |
| Shaft Runout | 0.025mm |
| Radial Play | 0.02mm at 450g |
| End Play | 0.08mm at 450g |
| Max. Radial Force | 15N at 10mm from the flange |
| Max. Axial Force | 10N |
| Insulation Class | Class B |
| Dielectric Strength | 500V DC for one minute |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Model | FL42RBL30 | FL42RBL60 | FL42RBL85 | FL42RBL93 |
| Number of Poles | 8 | 8 | 8 | 8 |
| Number of Phases | 3 | 3 | 3 | 3 |
| Rated Voltage V DC | 24 | 36 | 24 | 24 |
| Rated Speed RPM | 3500 | 4000 | 4000 | 6300 |
| Continuous Stall Torque mN·m | 21.6 | 96 | 180 | 138 |
| Rated Torque mN·m | 18 | 80 | 150 | 115 |
| Rated Power W | 6.5 | 32 | 62 | 76 |
| Peak Torque mN·m | 60 | 240 | 450 | 500 |
| Peak Current A | 1.5 | 5 | 7.5 | 10 |
| Phase to Phase Resistance Ω | 9.8 | 1.6 | 0.71 | 0.325 |
| Phase to Phase Inductance mH | 7.5 | 1.94 | 0.86 | 0.36 |
| Torque Constant | 48.7 | 38.5 | 38.6 | 28.7 |
| Rotor Inertia g·cm2 | 15.6 | 33 | 84 | 94 |
| Body Length mm | 30 | 60 | 85 | 93 |
| Mass Kg | 0.25 | 0.35 | 0.7 | 0.8 |
