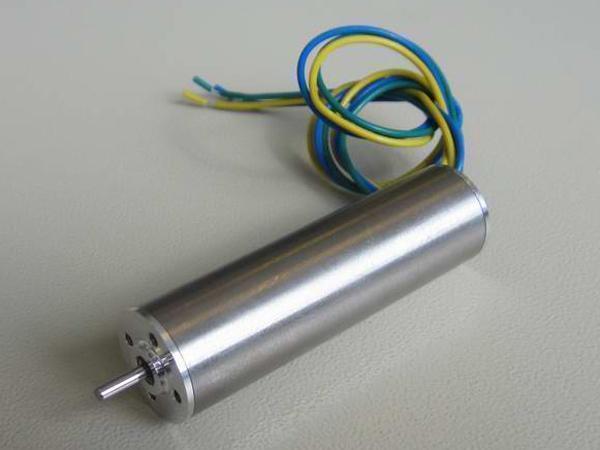

16mm Brushless Motor
| Winding Connection Mode | Star |
| Radial Play | 0.025mm at 360g |
| End Play | 0.025mm at 1000g |
| Max. Radial Force | 15N at 20mm |
| Max. Axial Force | 5N |
| Insulation Class | F Class |
| Dielectric Strength | 500V DC for one minute |
| Insulation Resistance | 100MΩ min., 500V DC |
| No. | Corresponding Color | Line No. | Function |
| 1 | Yellow | UL1332 AWG24 | Motor U |
| 2 | Red | Motor V | |
| 3 | Black | Motor W |
| Unit | Tolerance | FL16SBL28-12V-270-4A | FL16SBL40-24V-300-10A | FL16SBL56-24V-300-24A | |
| Number of Poles | 2 | 2 | 2 | ||
| Number of Phases | 3 | 3 | 3 | ||
| Rated Voltage | VDC | 12 | 24 | 24 | |
| No-load Speed | RPM | ±10% | 27000 | 30000 | 30000 |
| No-load Current | A | ±10% | 0.11 | 0.12 | 0.16 |
| Rated Speed | RPM | ±10% | 22000 | 25000 | 25000 |
| Rated Torque | mN·m | 1.6 | 4 | 9 | |
| Rated Power | W | 3.7 | 10 | 24 | |
| Peak Torque | mN·m | 4.8 | 12 | 27 | |
| Peak Current | A | 1.8 | 2.6 | 4.3 | |
| Phase Resistance | Ohms at 25℃ | ±20% | 5.4Ω | 6.6Ω | 3.15Ω |
| Phase Inductance | mH | ±10% | 0.17 | 0.21 | 0.15 |
| Torque Constant | 4.06 | 7.36 | 7.48 | ||
| Back-EMF Constant | mV/RPM | 0.43 | 0.77 | 0.78 | |
| Rotor Inertia | g·cm2 | 0.4 | 0.66 | 1.02 | |
| Body Length (L) | mm | 28 | 40 | 56 | |
| Mass | g | 29 | 42 | 64 |
