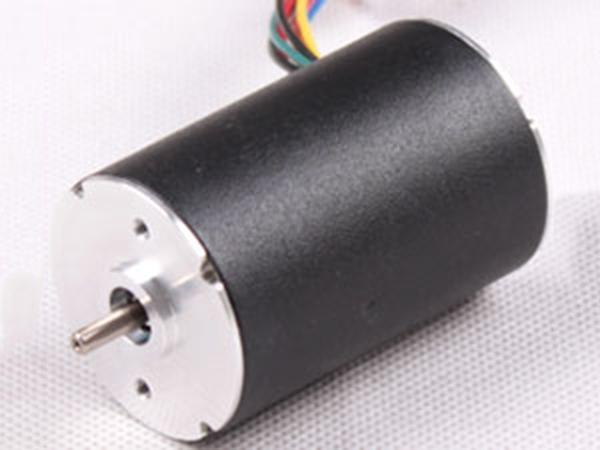

The 36mm brushless motor is mainly used for the automatic Doors. It features high power density, smooth speed regulation, and good performance of dynamic acceleration.
SpecificationWinding Connection Mode | Star |
Hall effect angle | 120degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max. radial force | 15N @ 10mm from the flange |
Max. axial force | 10N |
Insulation class | Class B/F |
Dielectric strength | 500VAC ,1 min. |
Insulation resistance | 100MΩ, 500VDC |
Model | Unit | FL36RBL40-24V-4818A | FL36RBL57-24V-4524A |
Number of poles | 8 | ||
Number of phase | 3 | ||
Rated voltage | VDC | 24 | |
Rated speed | RPM | 4800 | 4500 |
Continuous running torque | mN.m | 43 | 60 |
Rated torque | mN.m | 36 | 50 |
Rated power | W | 18 | 24 |
Peak torque | mN.m | 108 | 150 |
Peak current | A | 3.7 | 4.1 |
Line to line resistance | ohms@20℃ | 2.4 | 2.0 |
Line to line inductance | mH | 2.1 | 2.0 |
Torque constant | mNm/A | 32 | 39 |
Back E.M.F | Vrms/KRPM | 2.40 | 2.95 |
Rotor inertia | g.cm2 | 14 | 24 |
Body length(L) | mm | 40 | 55 |
Weight | Kg | 0.16 | 0.25 |
