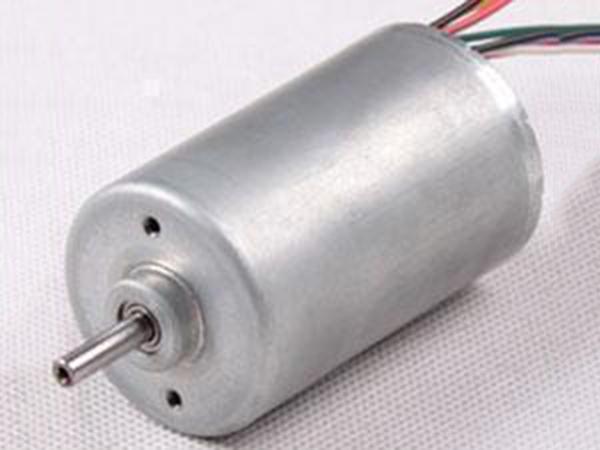

36mm Cost Efficient Brushless Motor
36mm Cost Efficient Brushless Motor is the great combination of cost efficiency, high power density and smooth speed regulation.
Specification| Winding Connection Mode | Star |
| Hall effect angle | 120degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max. radial force | 15N @ 10mm from the flange |
| Max. axial force | 10N |
| Insulation class | Class B/F |
| Dielectric strength | 500VAC,1min. |
| Insulation resistance | 100MΩ, 500VDC |
| Model | Unit | FL36CBL60-24V-4840A | FL36CBL57-24V-4533A | FL36CBL40-24V-4818A | FL36CBL30-24V-488A |
| Number of poles | 8 | ||||
| Number of phase | 3 | ||||
| Rated voltage | VDC | 24 | |||
| Rated speed | RPM | 4800 | 4500 | 4800 | 4800 |
| Continuous running torque | mN.m | 96 | 84 | 42 | 18 |
| Rated torque | mN.m | 80 | 70 | 35 | 15 |
| Rated power | W | 40 | 33 | 18 | 8 |
| Peak torque | mN.m | 240 | 210 | 105 | 45 |
| Peak current | A | 6.5 | 5.3 | 3.0 | 1.5 |
| Line to line resistance | ohms@20℃ | 0.93 | 1.3 | 2.7 | 7.8 |
| Line to line inductance | mH | 1.3 | 1.6 | 2.6 | 5.5 |
| Torque constant | mNm/A | 38.5 | 41.2 | 37.1 | 34.1 |
| Back E.M.F | Vrms/KRPM | 2.85 | 3.05 | 2.75 | 2.53 |
| Rotor inertia | g.cm2 | 30 | 27 | 12 | 6 |
| Body length(L) | mm | 60 | 57 | 40 | 30 |
| Weight | Kg | 0.28 | 0.25 | 0.16 | 0.12 |
