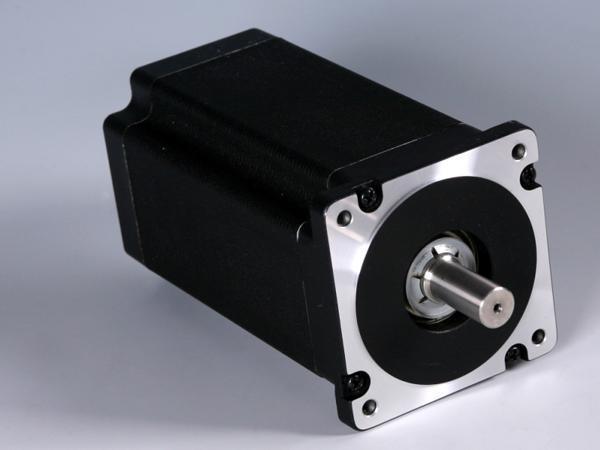

86mm Brushless Motor
Features
High torque, high power density, strong overload capacity, low noise
Application
Textile industry: Flat knitting machine
Medical industry: Centrifuge
Advertising industry: Packaging machinery
Vehicle industry: Electric car
Industrial automation industry: Electric generator
Household appliance industry: Home elevator, planter
| Winding Connection Mode | Star |
| Hall Distribution Angle | 120 degree electrical angle |
| Shaft Runout | 0.025mm |
| Radial Play | 0.02mm at 450g |
| End Play | 0.08mm at 450g |
| Max. Radial Force | 220N at 10mm from the flange |
| Max. Axial Force | 60N |
| Insulation Class | Class B |
| Dielectric Strength | 500V DC for one minute |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Model | FL86BLS58 | FL86BLS71 | FL86BLS71 | FL86BLS125 |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Rated Voltage V DC | 48 | |||
| Rated Speed RPM | 3000 | |||
| Rated Torque N·m | 0.35 | 0.7 | 1.4 | 2.1 |
| Rated Power W | 110 | 220 | 440 | 660 |
| Peak Torque N·m | 1.05 | 2.1 | 4.2 | 6.3 |
| Peak Current A | 11 | 19 | 33 | 55 |
| Resistance Ω | 1.05 | 0.36 | 0.2 | 0.16 |
| Inductance mH | 2.2 | 1.05 | 0.48 | 0.3 |
| Torque Constant | 0.10 | 0.11 | 0.13 | 0.11 |
| Back-EMF Constant V/KRPM | 10.5 | 11.5 | 13.5 | 11.5 |
| Rotor Inertia g·cm2 | 400 | 800 | 1600 | 2400 |
| Body Length mm | 58 | 71 | 98 | 125 |
| Mass Kg | 1.5 | 1.85 | 2.6 | 4 |
